One of my latest aircraft developments in FlightGear is the Ilyushin Il-76MD. In this post I will show you the main features in pictures, have fun!

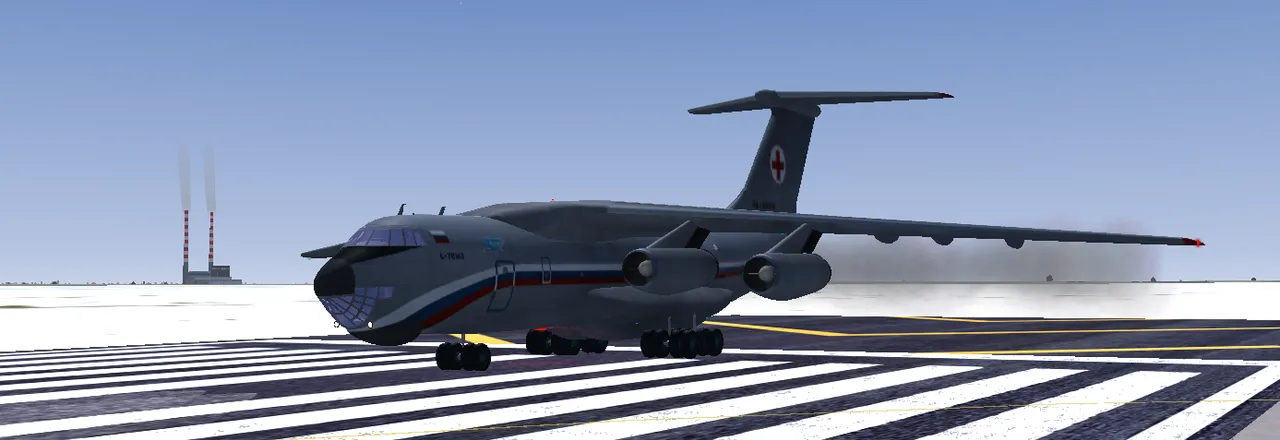

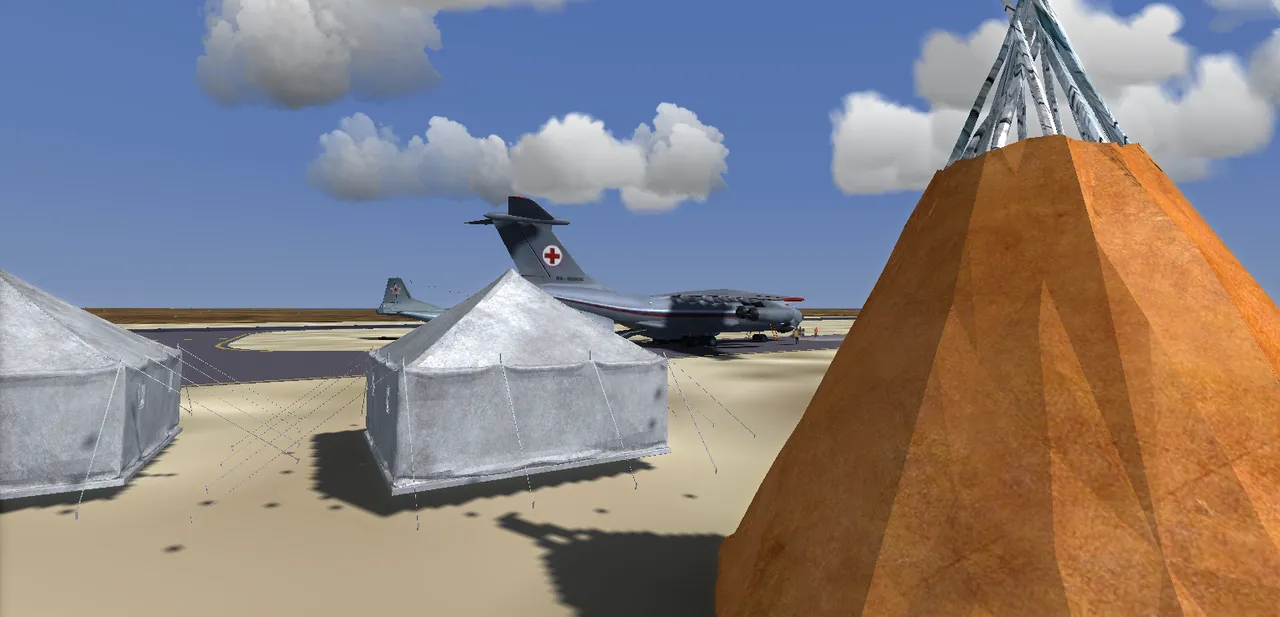

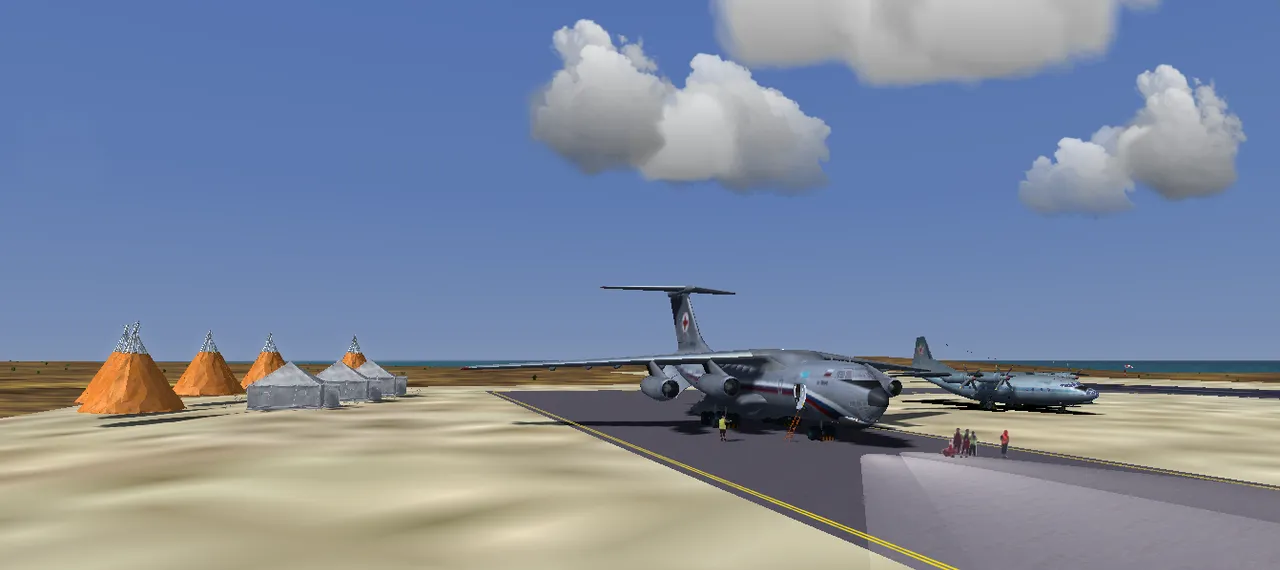

The Scalpel Version has a mobile hospital on board, its nickname is Flying Hospital
The Ilyushin Il-76MD is meant for parachute operations and landing of military personnel, military equipment, cargoes, fuel and containers. By reinforcing its main structural elements (airframe and landing gear), the maximum takeoff weight and commercial load have been increased.

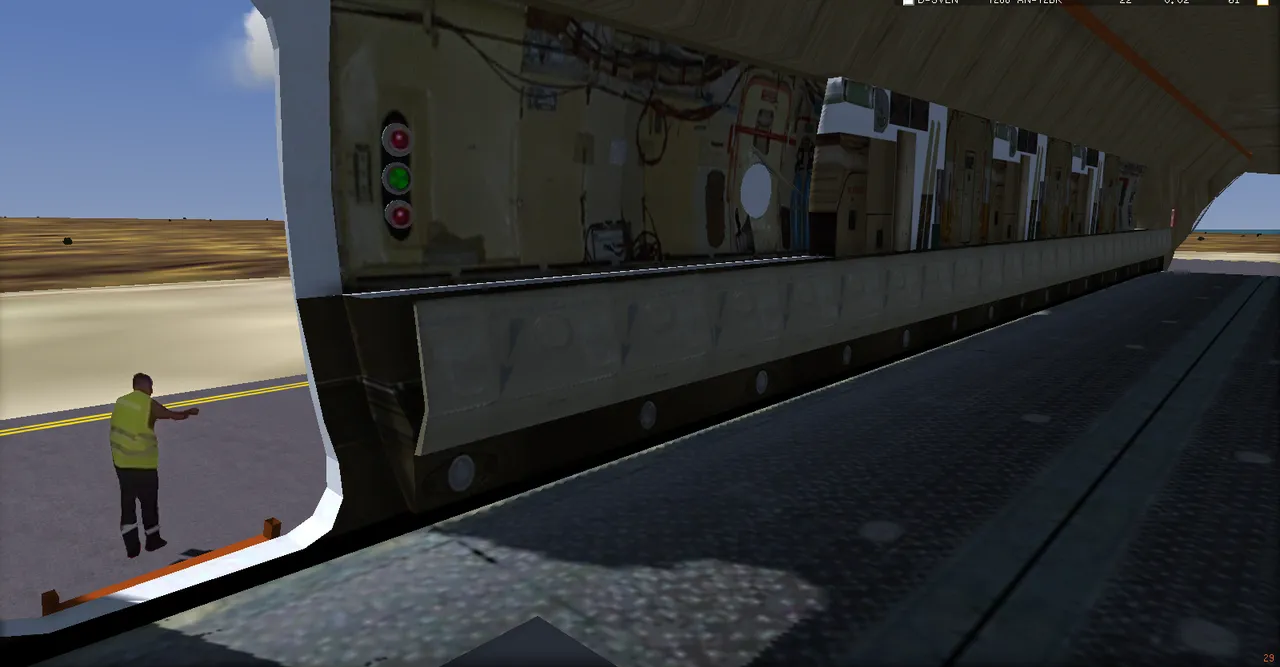

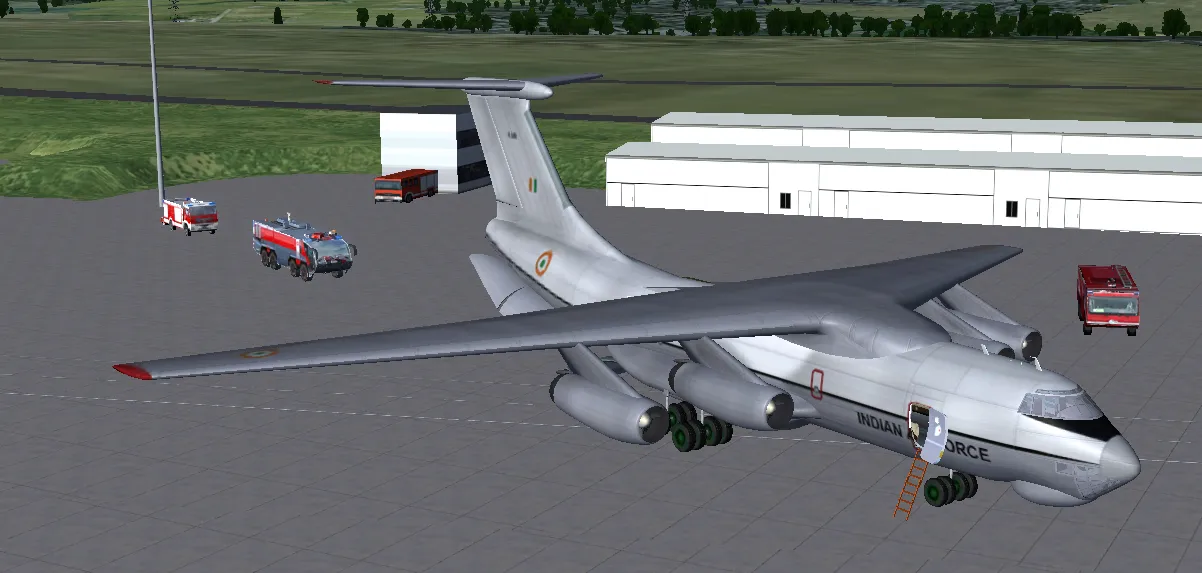

Loading 2 fire fighting trucks

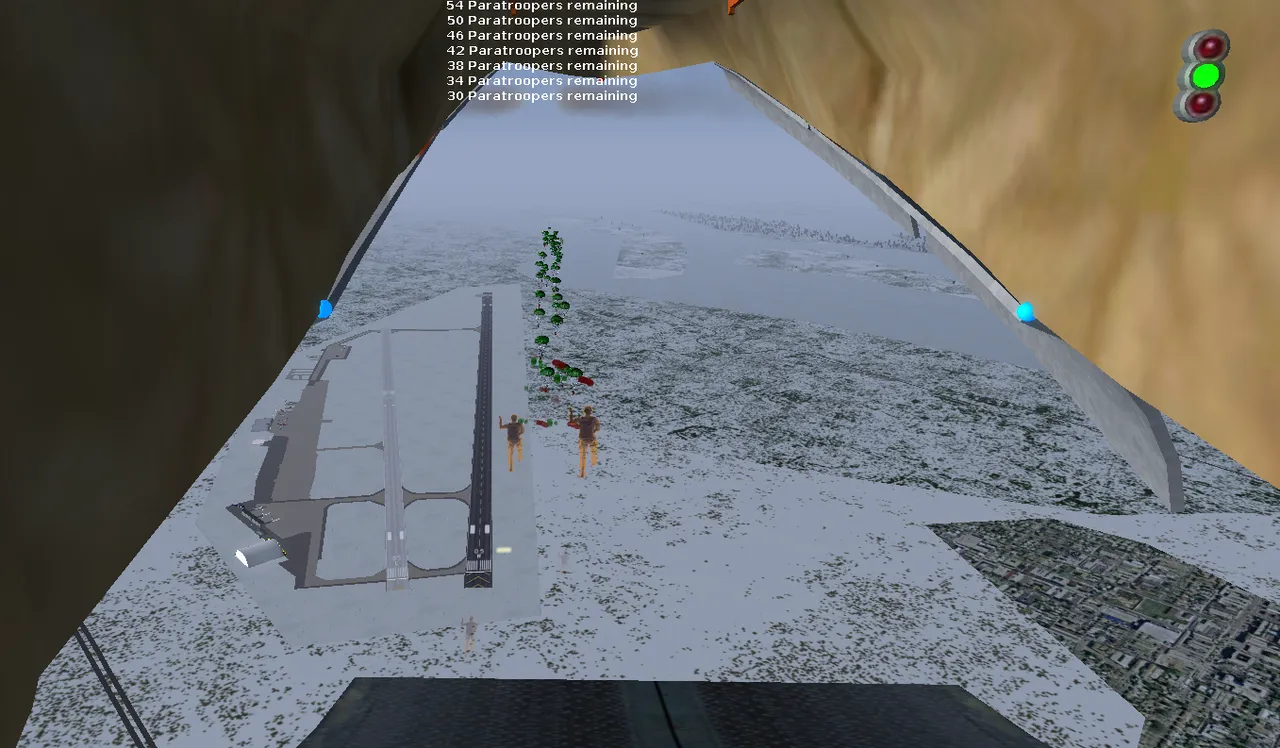

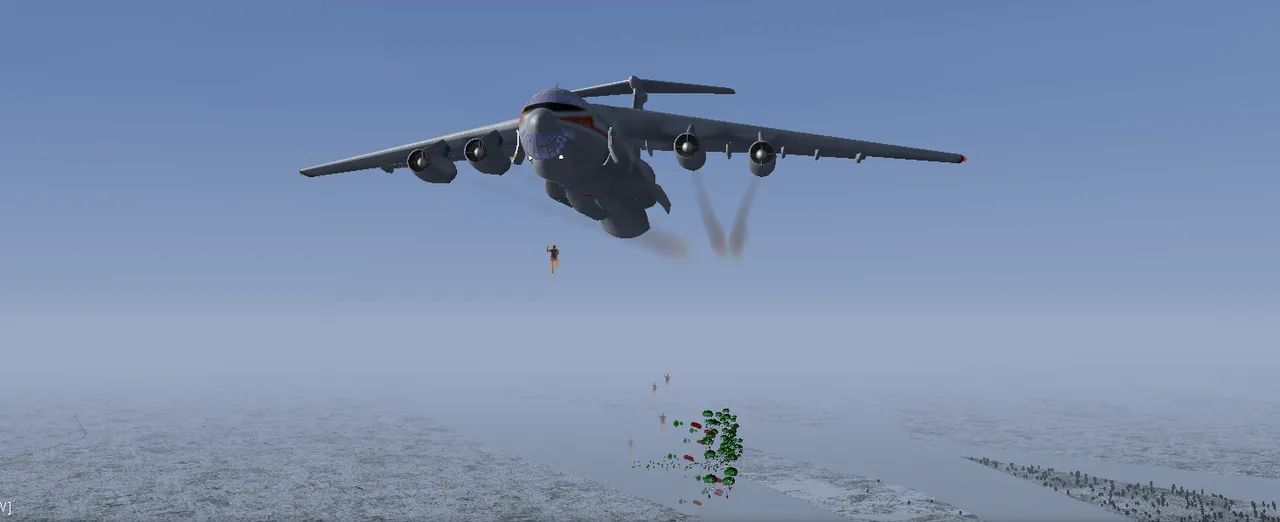

120 Paratroopers are dropping from the sides and from the main cargo door

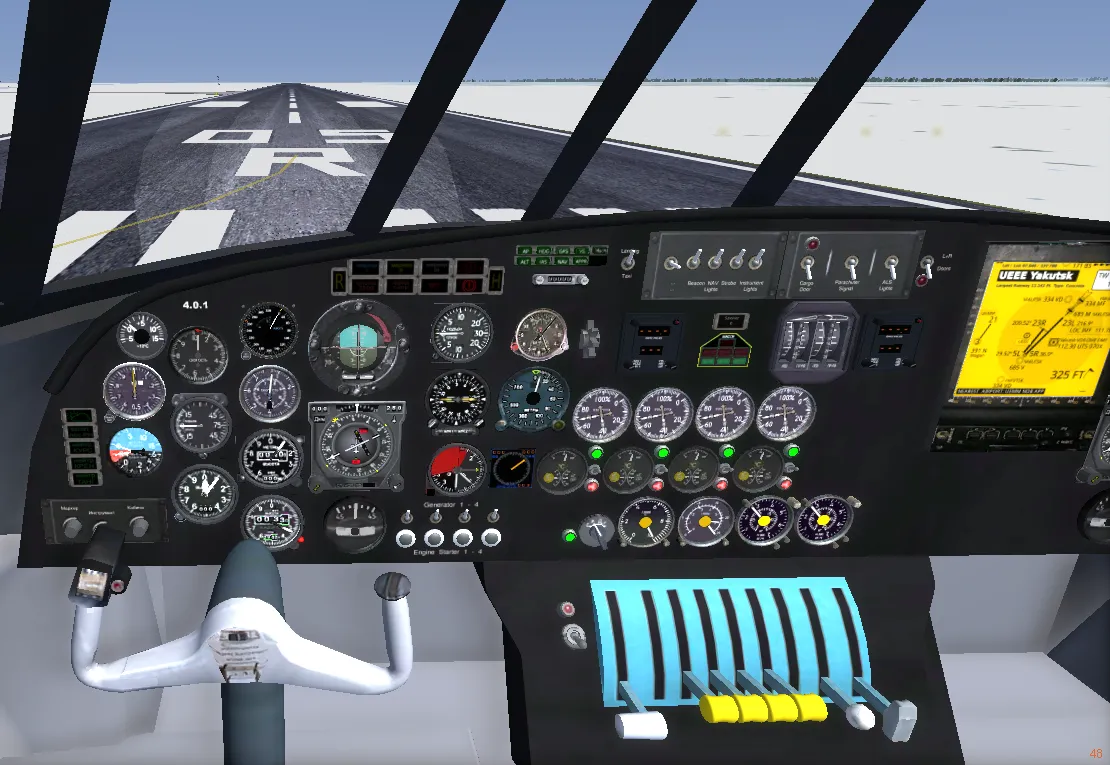

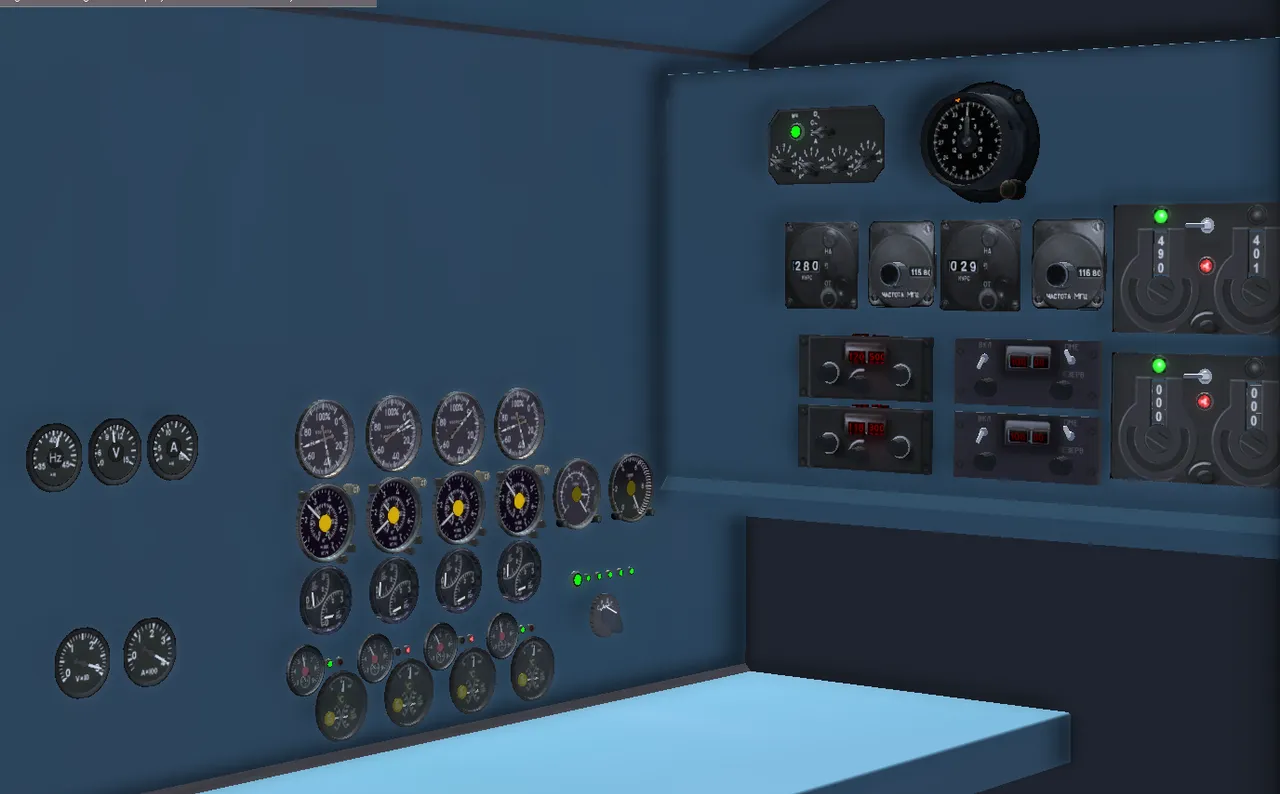

Inside there are 190 instruments, lamps and switches, all working and animated

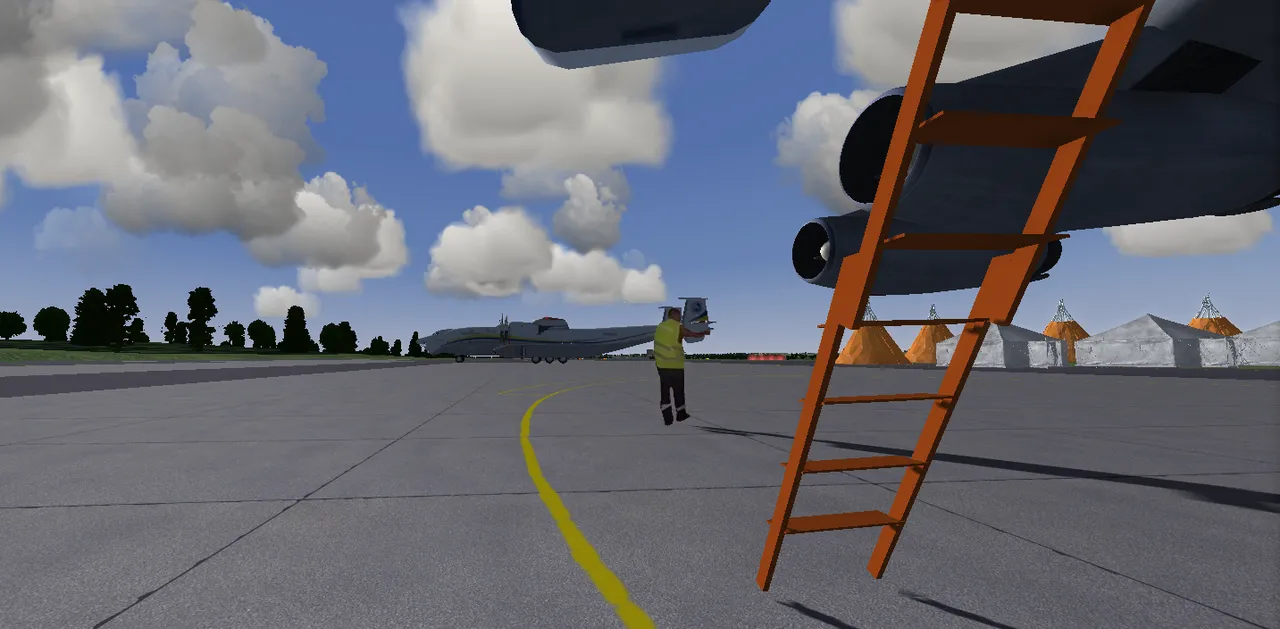

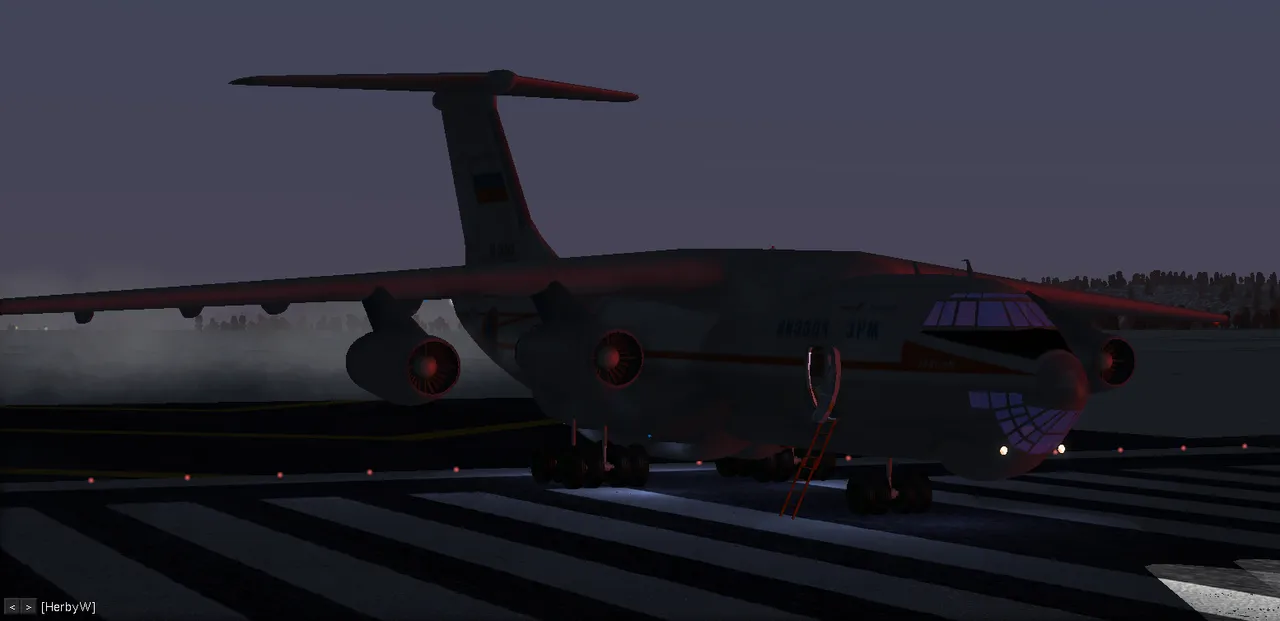

Ambient ground lights

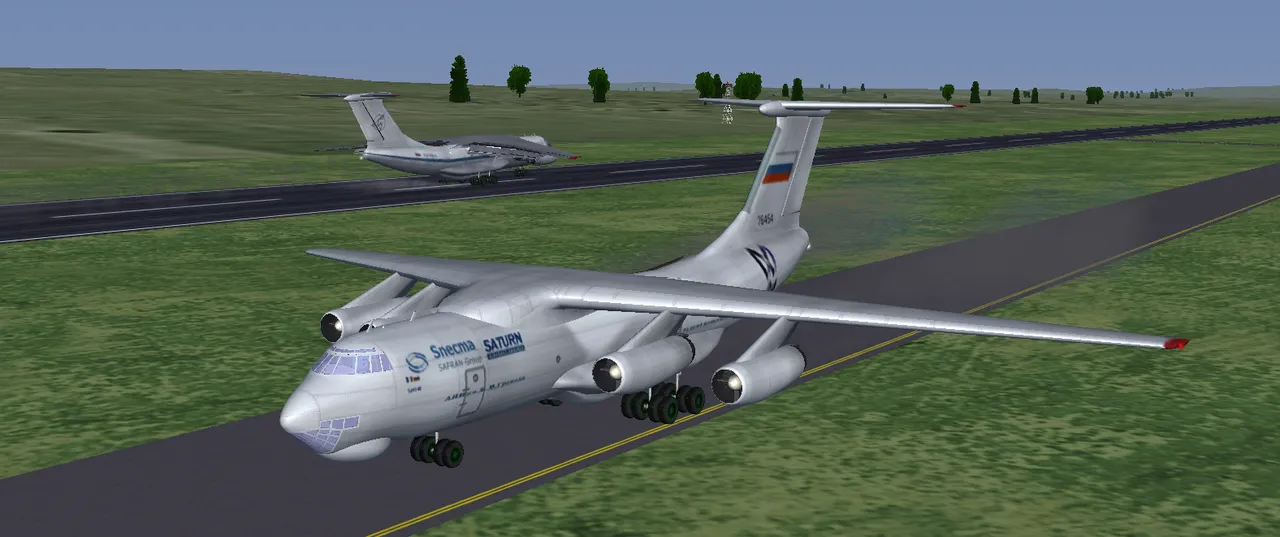

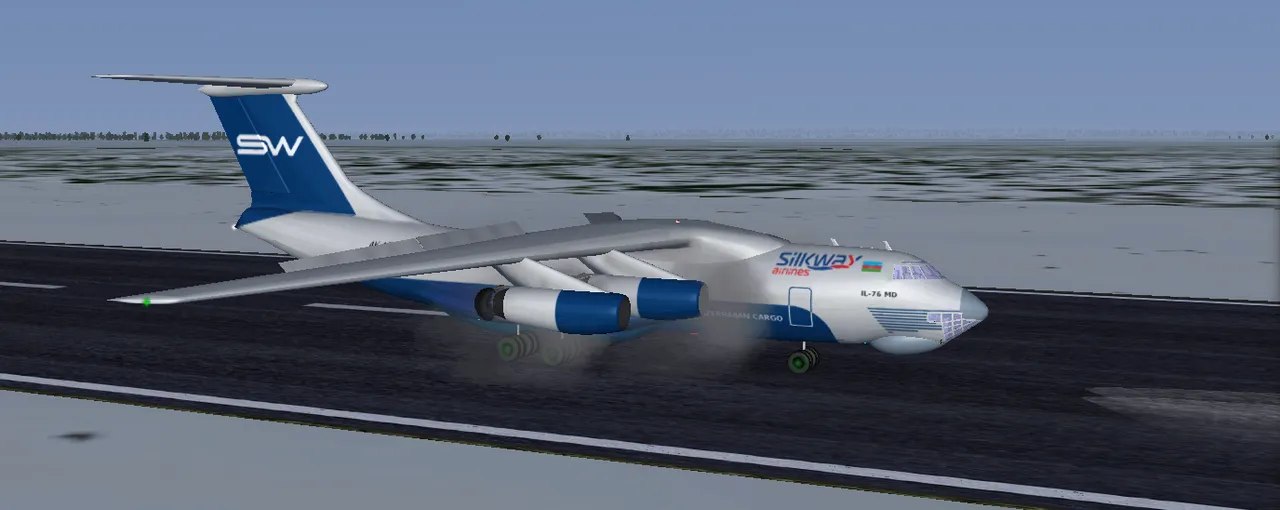

Lots of liveries
Different 3D-Sounds in different viewpoints
Main technical characteristics
Dimensional characteristics
Length, m 46,6
Height, m 14,76
Wingspan, m 50,5
Wing area, sq. m. 300
Wing loading: 129.72 lb/sqft
Fuselage diameter, m 4,8
Power plant parameters
Number x engine type 4 x turbojet engine
Engine model D-30KP series 2, 12 000 kgf each or: Aviadvigatel PS-90-76 turbofans, 142 kN (32,000 lbf) or 14,500 kgf each
Weight parameters
Empty weight: 92,500 kg
Max. takeoff weight: 195,000 kg
Maximum takeoff weight, tons 190 (210 t = 462970 lbs)
Maximum payload, tons 48 (- 60)
Fuel tank capacity, l 109 500
Aircraft performance
Maximum speed: 900 km/h (490 kt, 560 mph) Mach 0.82 depending on altitude
Cruising speed, km/h 750 - 780
Service ceiling: 13,000 m (42,700 ft)
Flight altitude, m 9 100 - 12 100
Flight range with payload of 40 tons, 4 400 km
Takeoff distance, m 1 700
Landing distance, m 930
minimal landing run: 450 m with thrust reversal
Number of seats
Crew, persons 7 (6)
Passengers, persons single-deck version:
126 paratroopers
145 military personnel
114 wounded
Double-deck version:
225 military personnel
Freight compartment parameters
Length x Width x Height, m 24,54x3,45x3,4
Volume, cubic meters 321
Specified life
Calendar operating life, years 45
Number of flights 8 000
Number of flight hours, hr. 12 000
My posts on FlightGear so far:
Roziere Balloon
Hot Air Balloon Series
Tupolev Tu-95 Tu-160
Antonov An-12 An-22 An-225
Mil-Mi-6PS fire fighting Video
Mil-Mi-6PS water loading Video
Mil-Mi-6PS fuel truck and ice systems Video
Mil-Mi-6PS startup and ILS landing Video
Mil-Mi-6PS autorotation Video
HowTo make aircrafts
You may download all models for free from my github
The simulator is also free for win, mac and linux: http://www.flightgear.org
Until next time!
Thank you for your attention!
Original content by @schamangerbert
